MX Series

Bench/System Multi-Range DC Power Supply with digital control, 3 or 4 Outputs, 315 to 420W with/without Remote Interfaces

MX100T programmable power supply
MX180TP programmable power supply.
MX100QP programmable power supply.
AIM Test Bridge Image

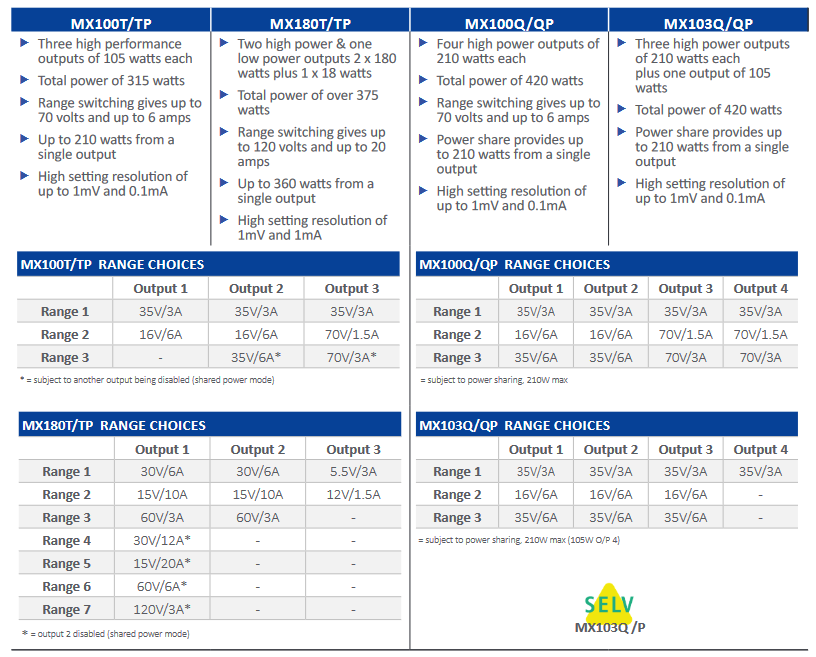

MX Series Power Supply Comparison
MX100T programmable power supply
MX180TP programmable power supply.
MX100QP programmable power supply.
AIM Test Bridge Image
MX Series Power Supply Comparison
  • Three or four high performance outputs each with full functionality
  • Range switching gives variable voltage/current combinations
  • Shared power mode provides double power from a single output
  • Low output noise and ripple via linear final regulation
  • High setting resolution of up to 1mV and 0.1mA
  • Variable OVP and OCP trips on all outputs which can be linked (MX-Q Series 2 units only)
  • Individual or combined output on/off control with programmable delay sequencing.
  • Selectable voltage tracking (isolated tracking)
  • Selectable current meter averaging
  • Switchable remote sense capability
  • Graphic LCD (colour on Series 2) provides simultaneous output metering
  • Numeric or spin-wheel control of all parameters
  • 50 setting memories per output plus 50 linked memories
  • 3U rack case for bench or rack mounting (4U rack kit accessory available)
  • RS-232, USB and LAN (LXI) interfaces (P models)
  • GPIB option (P models only)
  • Duplicate power & sense terminals at rear (P models)
  • Software control from Test Bridge software (free download - P models only)
  • Series 2 ("S2") models add:
  • Colour display
  • Enhanced channel power sharing
  • 'TripLink' feature: Link channels to trip together on OVP or OCP
  • New MX103Q SELV Model
Datasheet
Contact Us
Image Model Description

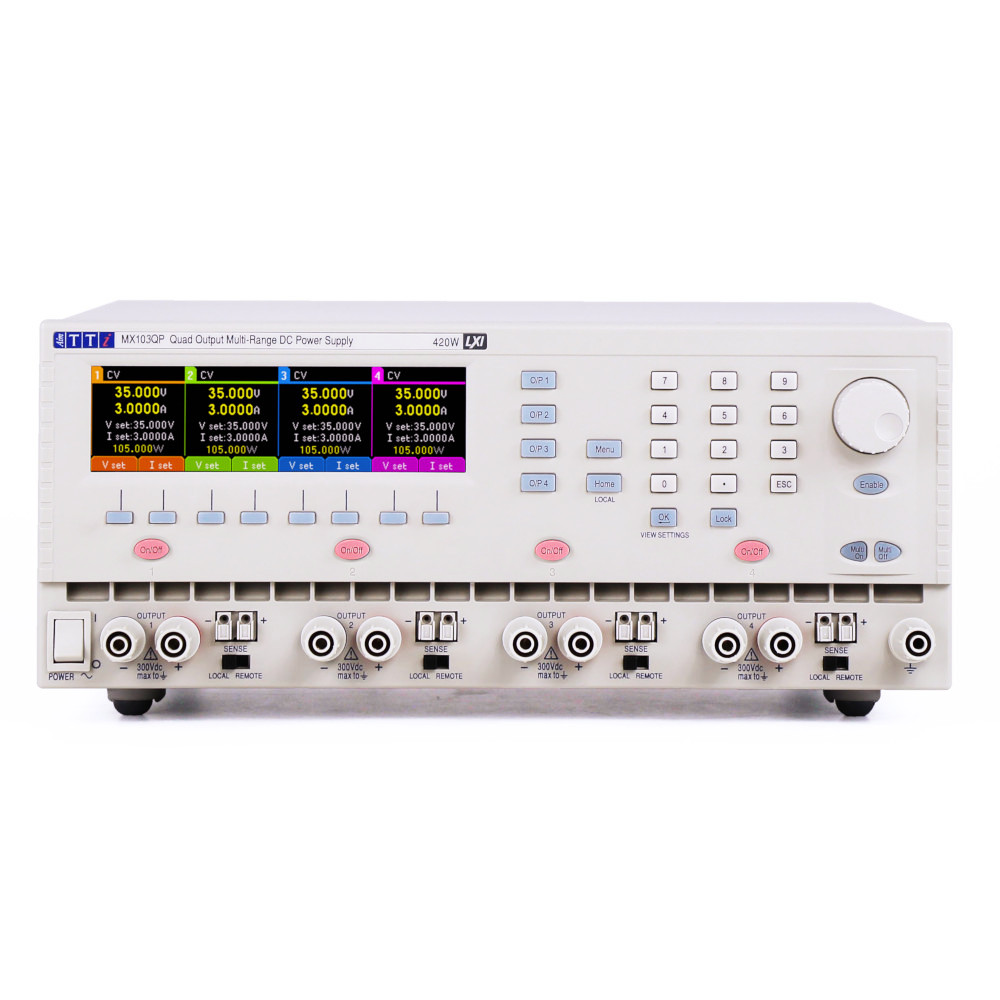

MX103QP S2 MX103QP S2 Bench/System Multi-Range DC Power Supply Quad Output, 4 x 35V/3A 420W SELV, USB, RS232 and LAN Interfaces, GPIB optional

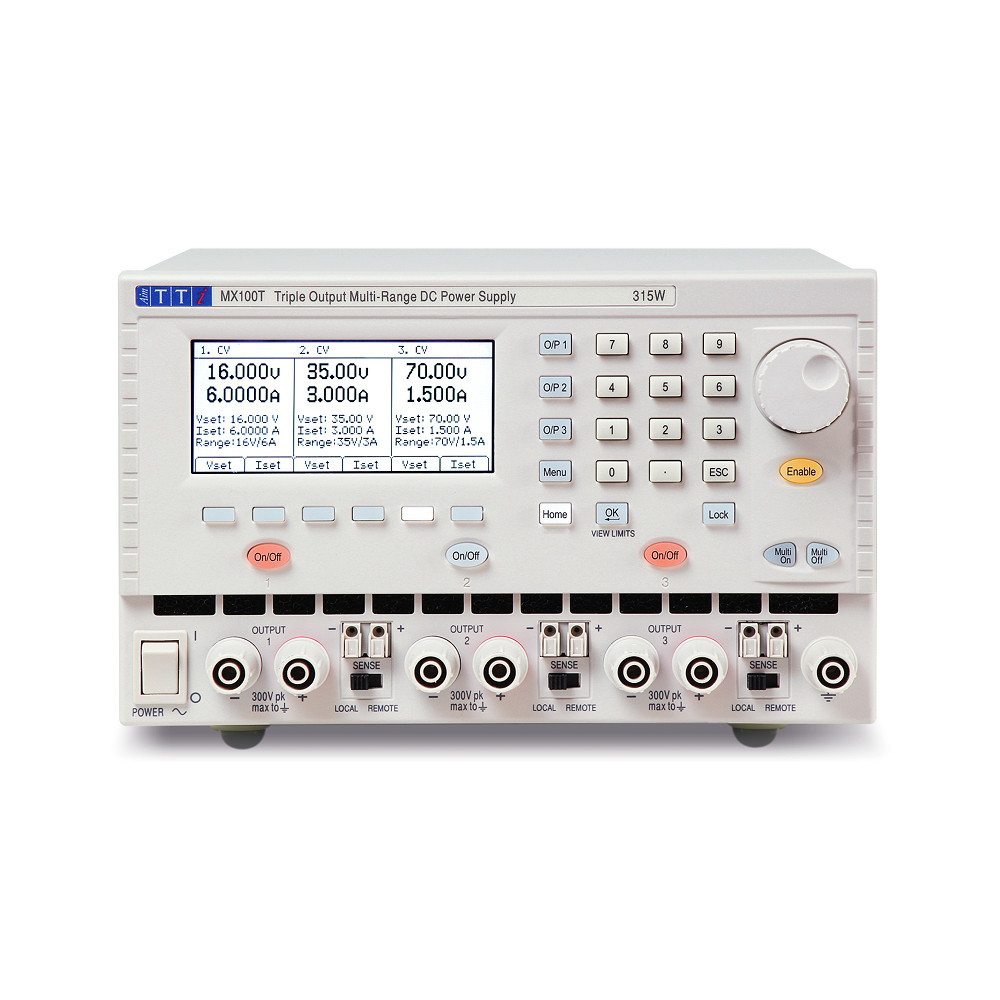

MX100T MX100T Bench/System Multi-Range DC Power Supply Triple Outputs, 3 x 35V/3A 315W, No Interfaces

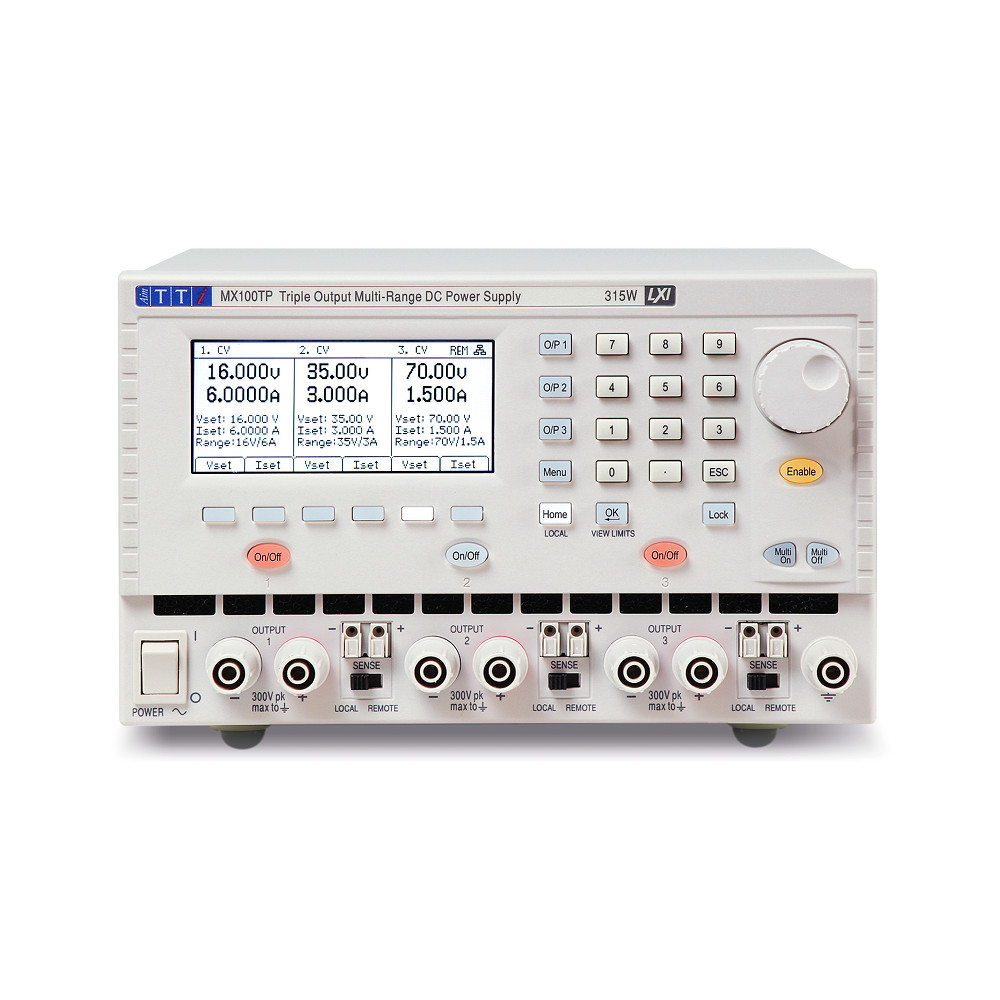

MX100TP MX100TP Bench/System Multi-Range DC Power Supply Triple Outputs, 3 x 35V/3A 315W, USB, RS232, LAN/LXI interfaces, GPIB optional
MX180T MX180T Bench/System Multi-Range DC Power Supply 378W, three full-performance outputs, 2 x 180 watts plus 1 x 18 watts, No Interfaces

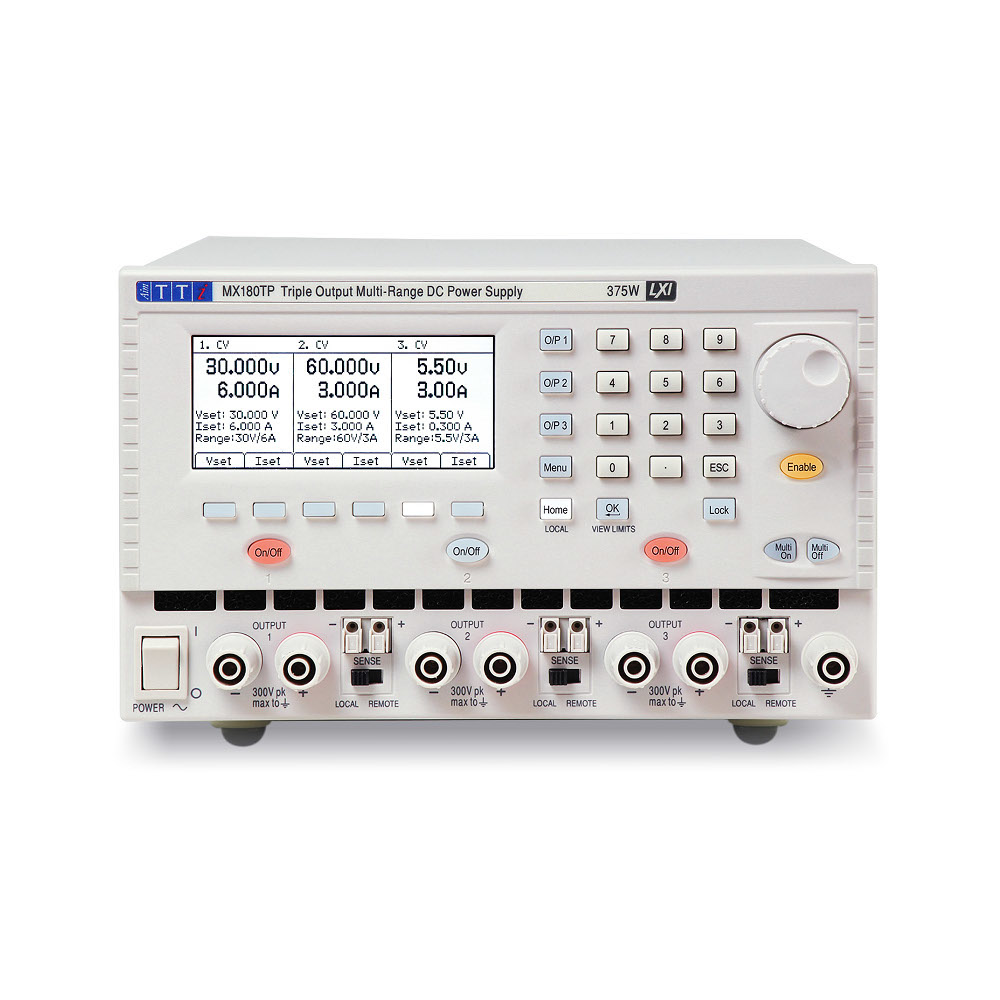

MX180TP MX180TP Bench/System Multi-Range DC Power Supply 378W, three full-performance outputs, 2 x 180 watts plus 1 x 18 watts, USB, RS232, LAN/LXI interfaces, GPIB optional
MX100Q S2 MX100Q S2 Bench/System Multi-Range DC Power Supply Quad Outputs, 4 x 35V/3A 420W - Series 2

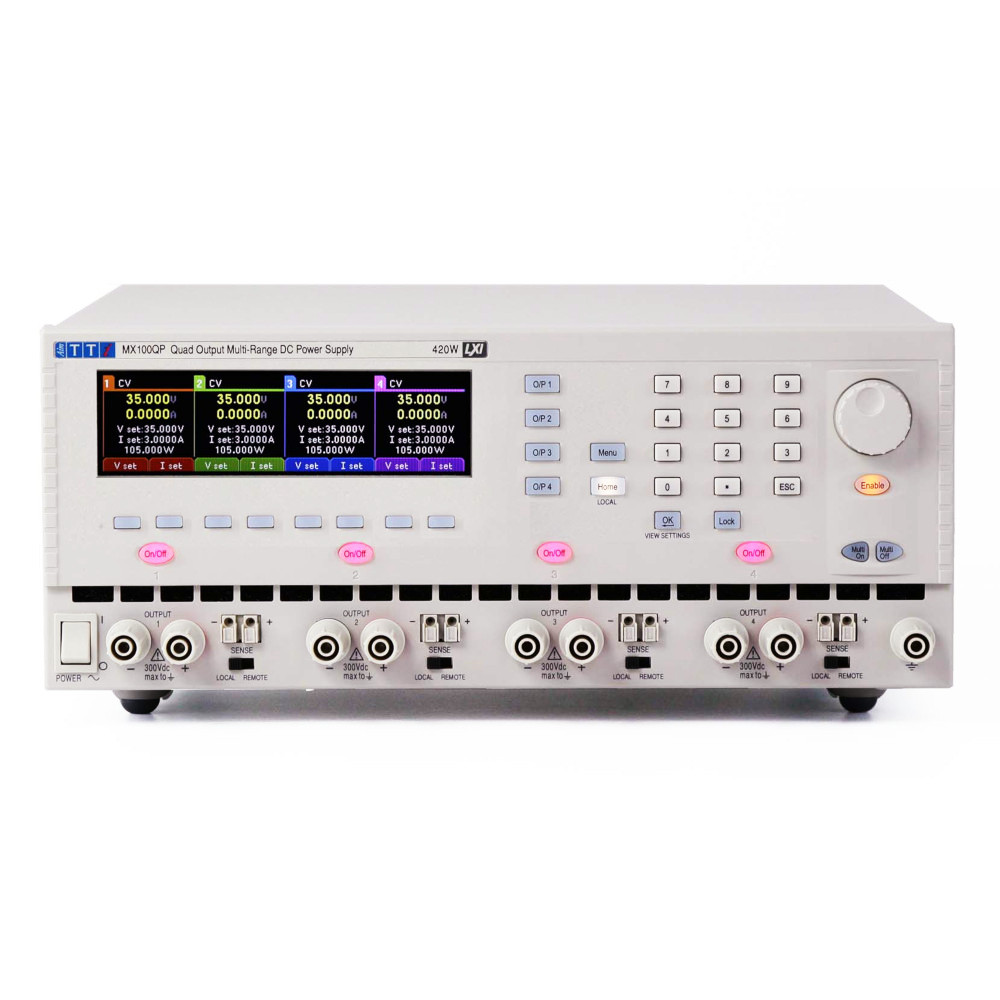

MX100QP S2 MX100QP S2 Bench/System Multi-Range DC Power Supply Quad Outputs, 4 x 35V/3A 420W - Series 2, USB, RS232, LAN/LXI interfaces, GPIB optional
MX103Q S2 MX103Q S2 Bench/System Multi-Range DC Power Supply Quad Outputs, 4 x 35V/3A 420W SELV
