PL Series

Bench/System Linear Regulated DC Power Supply with Smart Analog Controls, Single, Dual or Triple Outputs, 48 to 242 watts, with/without Remote Interfaces

CPX400DP Power Supply Image
CPX400SP Power Supply Image
CPX Power Curves Graph Image
AIM Test Bridge Image
AIM Test Bridge Image
CPX400DP Power Supply Image
CPX400SP Power Supply Image
CPX Power Curves Graph Image
AIM Test Bridge Image
AIM Test Bridge Image
  • Single, dual or triple output models
  • Models from 6V/8A up to 60V/1.5A
  • Linear regulation - for the best performance
  • Ultra-compact design - uses up less space
  • True Analogue controls - for ease of use
  • S-Lock function - instantly lock settings
  • V-Span function - customize the voltage range
  • Low current range and current meter averaging
  • DC output switches and "view limits" button
  • Selectable remote sense terminals
  • Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on dual & triple models
  • High current low voltage output on triple output model
  • P Version adds:
  • RS-232, USB and LAN (Ethernet)
  • LAN Interface conforms with LXI standard
  • Analogue remote control of V and I (single output models only)

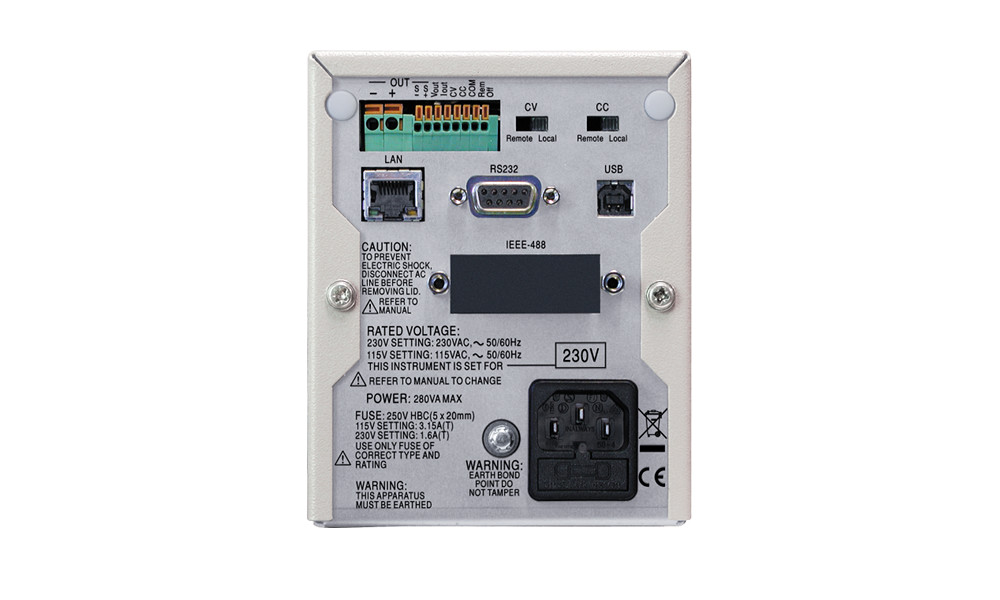

  • Front and rear terminals
  • P(G) Version is as P version above plus GPIB interface
Datasheet
Contact Us
Image Model Description

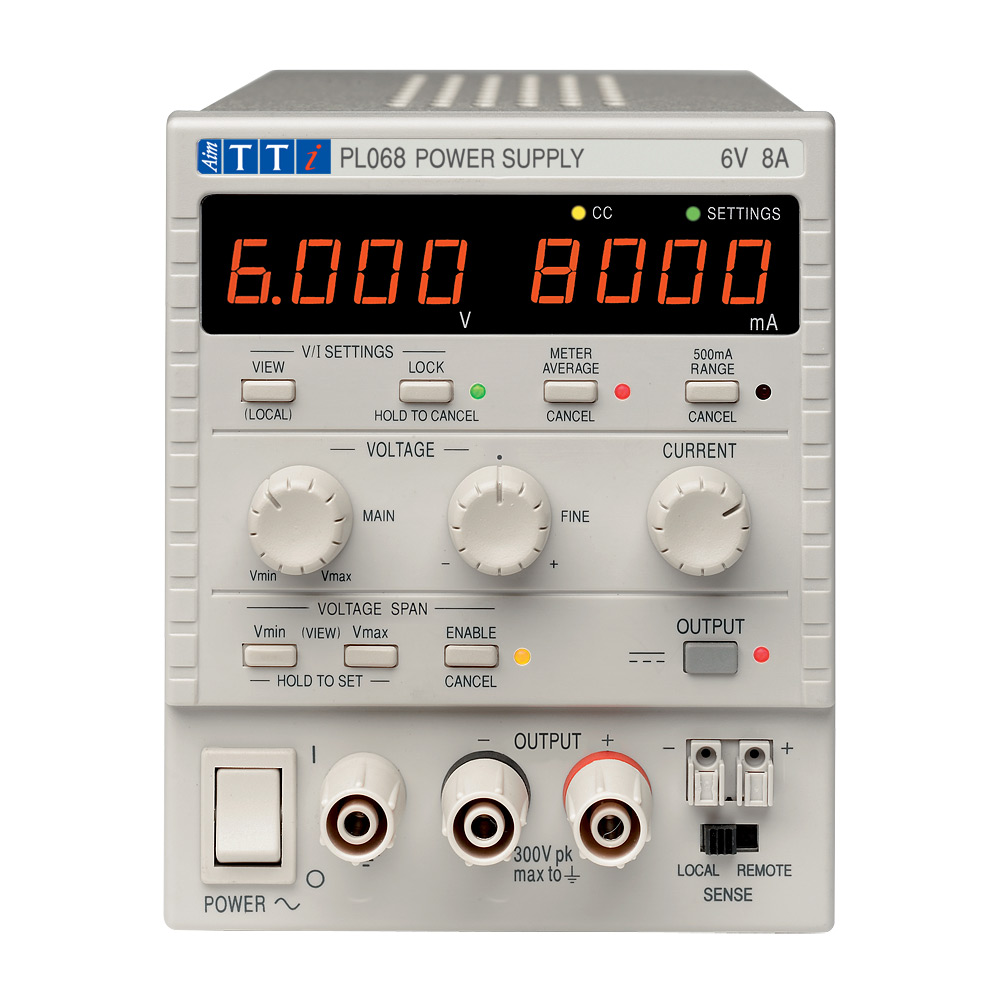

PL068 PL068 Bench/System Linear Regulated DC Power Supply Single Output, 6V/8A, No Interfaces
PL155 PL155 Bench/System Linear Regulated DC Power Supply Single Output, 15V/5A, No Interfaces

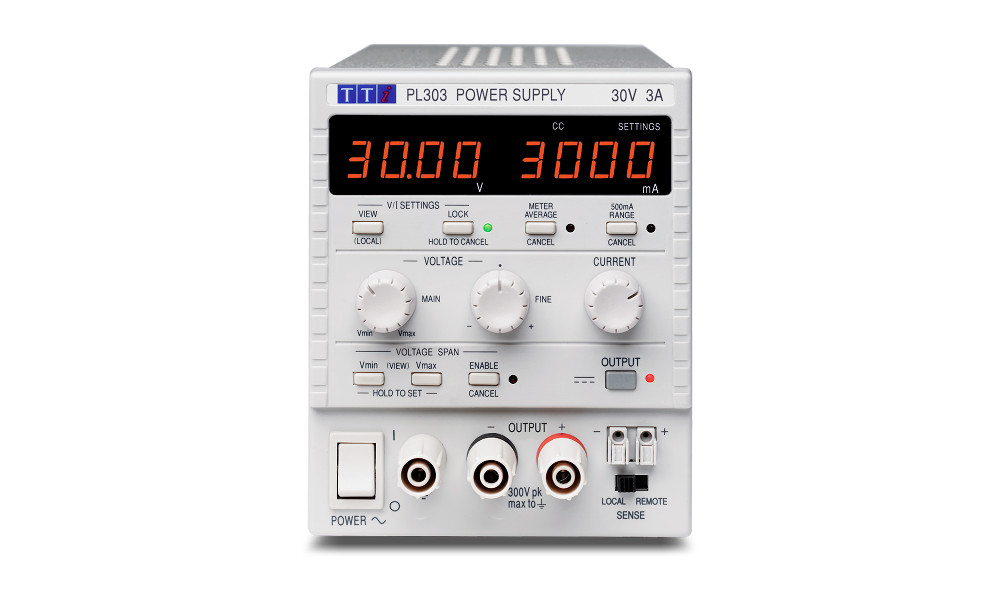

PL303 PL303 Bench/System Linear Regulated DC Power Supply Single Output, 30V/3A, No Interfaces

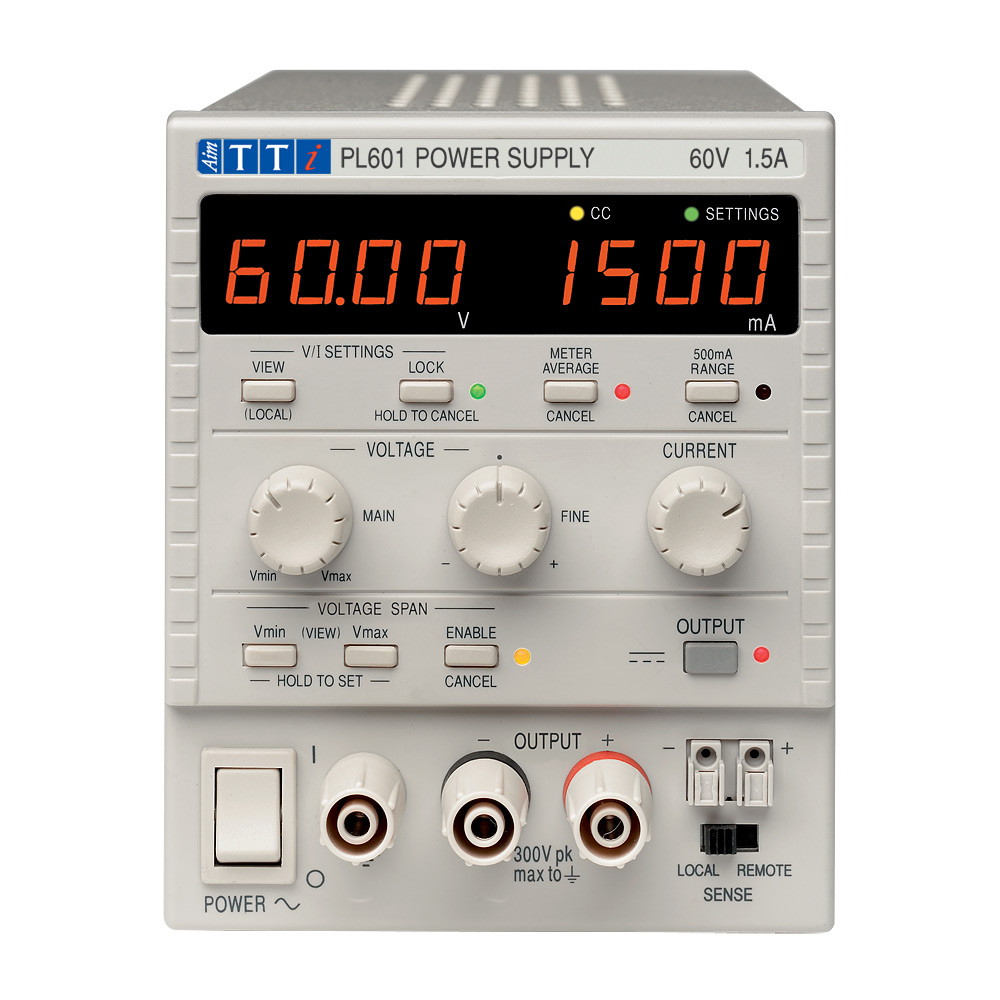

PL601 PL601 Bench/System Linear Regulated DC Power Supply Single Output, 60V/1.5A, No Interfaces
PL068-P PL068-P Bench/System Linear Regulated DC Power Supply Single Output, 6V/8A, USB, RS232, LAN(LXI) and Analogue interfaces

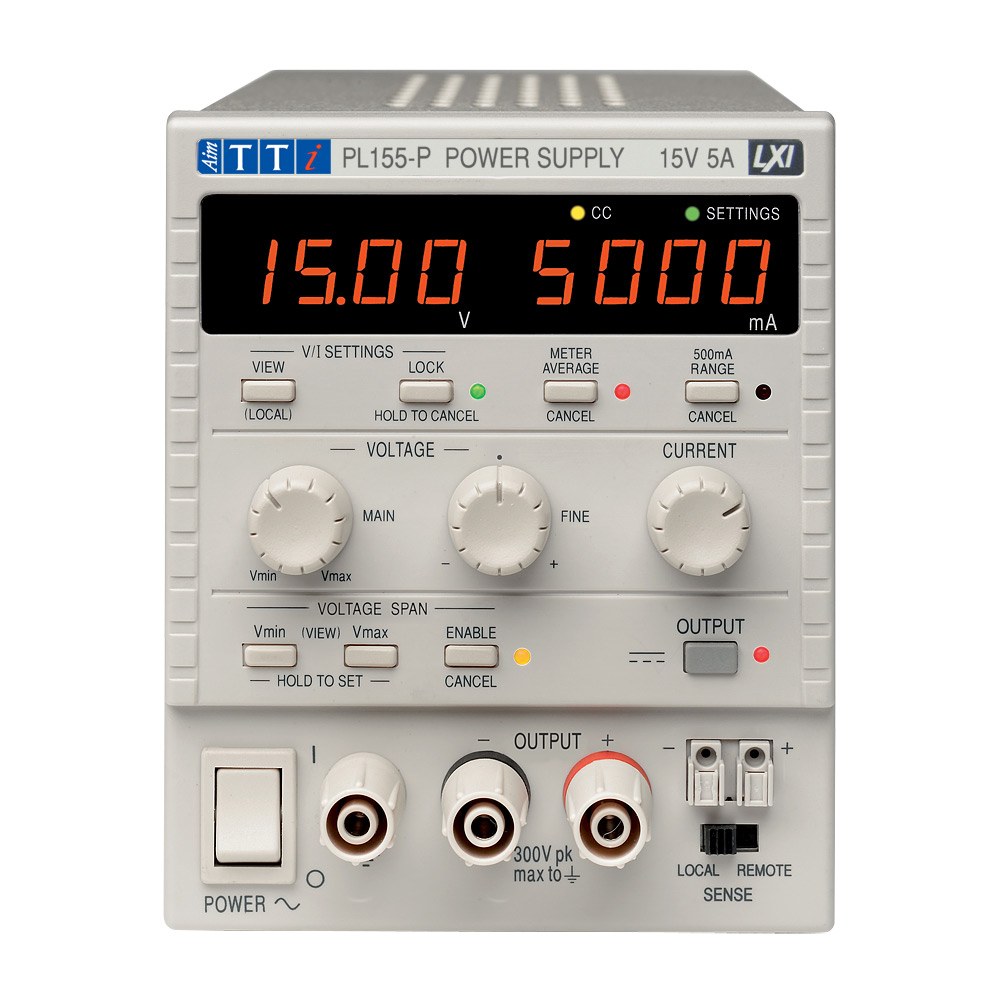

PL155-P PL155-P Bench/System Linear Regulated DC Power Supply Single Output, 15V/5A, USB, RS232, LAN(LXI) and Analogue Interfaces
PL303-P PL303-P Bench/System Linear Regulated DC Power Supply Single Output, 30V/3A, USB, RS232, LAN(LXI) and Analogue Interfaces
PL601-P PL601-P Bench/System Linear Regulated DC Power Supply Single Output, 60V/1.5A, USB, RS232, LAN(LXI) and Analogue Interfaces

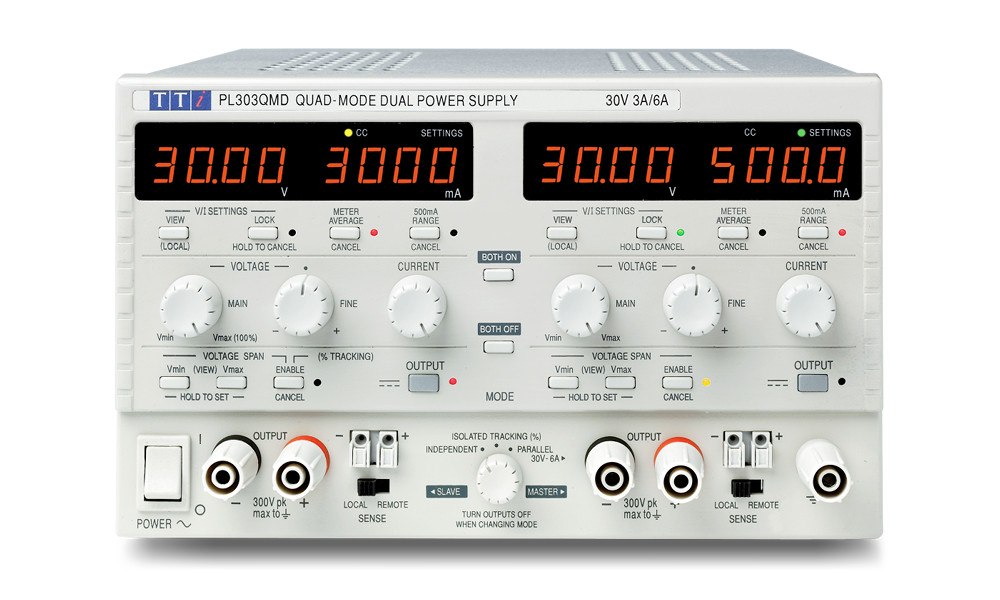

PL303QMD PL303QMD Bench/System Linear Regulated DC Power Supply Dual Output, 2 x 30V/3A, No Interfaces
PL303QMT PL303QMT Bench/System Linear Regulated DC Power Supply Triple Ouput, 2 x 30V/3A plus 6V/6A, No Interfaces

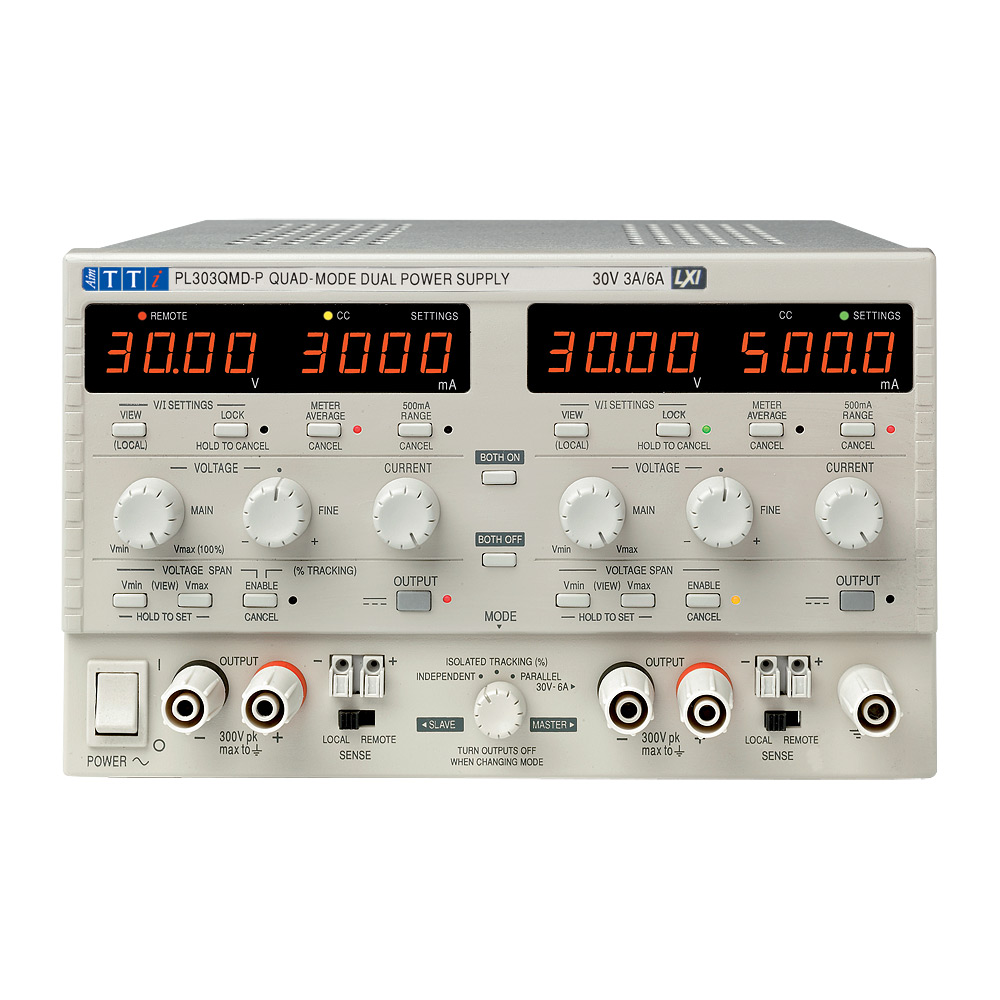

PL303QMD-P PL303QMD-P Bench/System Linear Regulated DC Power Supply Dual Output, 2 x 30V/3A, USB, RS232 & LAN Interfaces

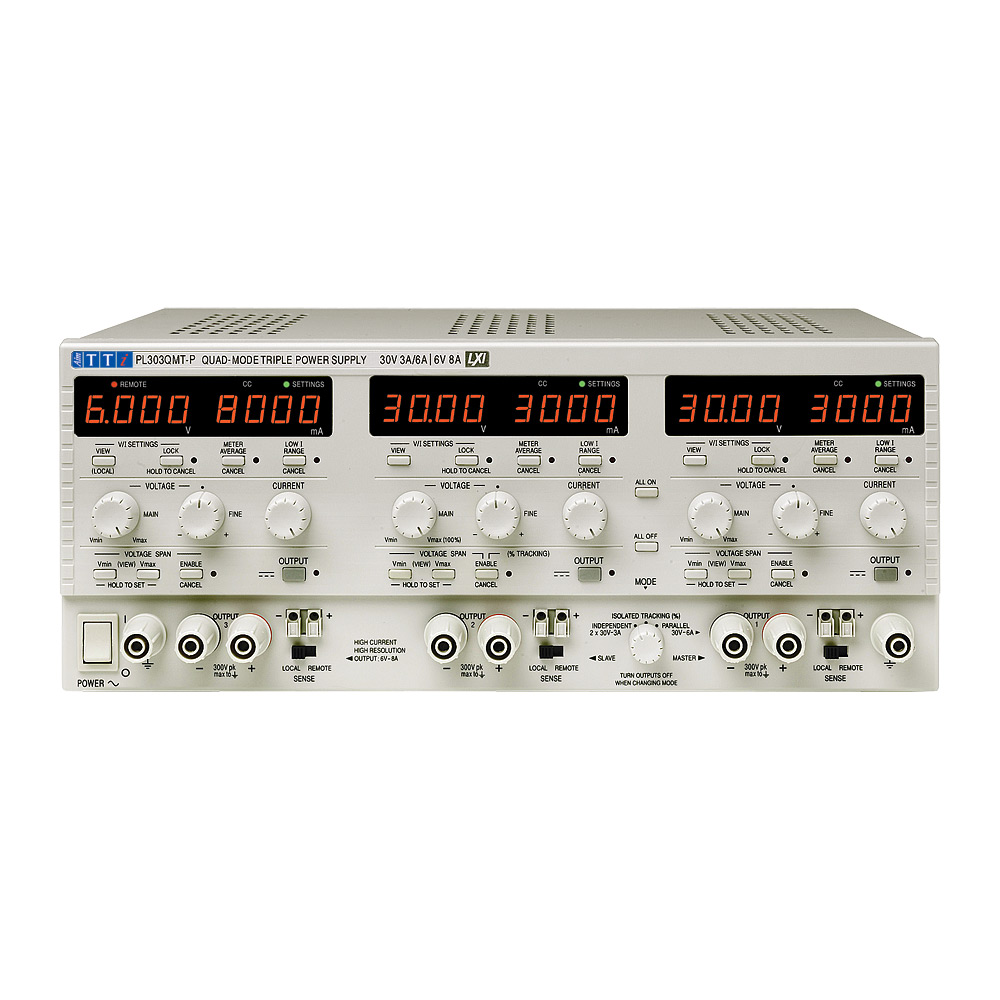

PL303QMT-P PL303QMT-P Bench/System Linear Regulated DC Power Supply Triple Ouput, 2 x 30V/3A plus 6V/6A, USB, RS232 & LAN Interfaces

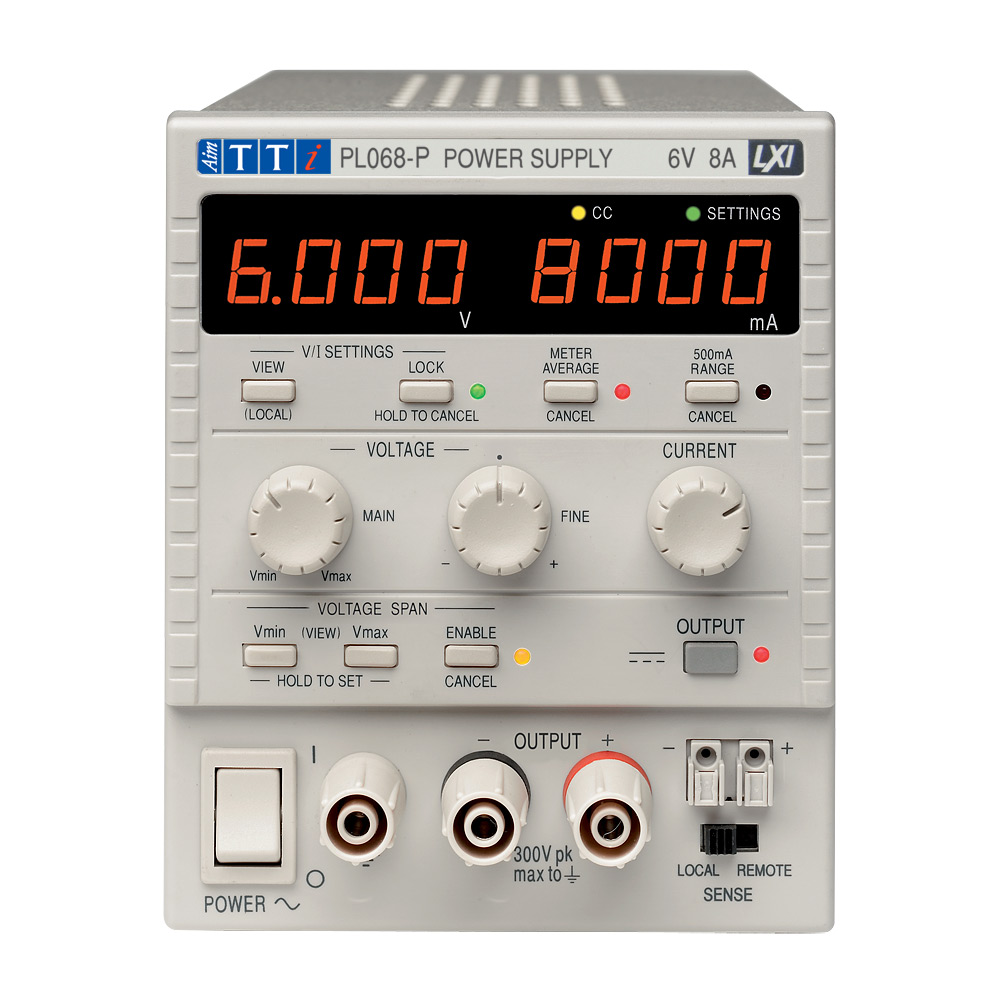

PL068-P(G) PL068-P(G) Bench/System Linear Regulated DC Power Supply Single Output, 0-6V/0-8A USB, RS232, LAN(LXI), Analogue and GPIB interfacesBench/System Linear Regulated DC Power Supply Single Output, 0-6V/0-8A USB, RS232, LAN(LXI), Analogue and GPIB interfaces
PL601-P(G) PL601-P(G) Bench/System Linear Regulated DC Power Supply Single 0-60V/0-1.5A USB, RS232, LAN(LXI), Analogue and GPIB interfaces
PL303-P(G) PL303-P(G) Bench/System Linear Regulated DC Power Supply Single 0-30V/0-3A USB, RS232, LAN(LXI), Analogue and GPIB interfaces
PL303QMD-P(G) PL303QMD-P(G) Bench/System Linear Regulated DC Power Supply Dual 0-30V/0-3A USB/RS232/LAN(LXI)/GPIB
PL303QMT-P(G) PL303QMT-P(G) Bench/System Linear Regulated DC Power Supply Triple 0-30V/0-3A, 0-6V/0-8A USB, RS232, LAN(LXI) and GPIB interfaces
PL155-P(G) PL155-P(G) Bench/System Linear Regulated DC Power Supply Single Output, 0-15V/0-5A USB, RS232, LAN(LXI), Analogue and GPIB interfaces
