PLH Series

Bench/System Higher Voltage DC Power Supply with linear regulation. Single output 90 watts, 120V or 250V, with/without Remote Interfaces

CPX400DP Power Supply Image
AIM Test Bridge Image
CPX400DP Power Supply Image
AIM Test Bridge Image
  • Single output 120V 90W or 250V 94W
  • Linear regulation - for the best performance
  • Ultra-compact design - uses up less space
  • True Analogue controls - for ease of use
  • S-Lock function - instantly lock settings
  • V-Span function - customize the voltage range
  • Low current range and current meter averaging
  • DC output switches and "view limits" button
  • Selectable remote sense terminals
  • P versions add:
  • Full digital remote control and readback
  • RS-232, USB and LAN (Ethernet)
  • LAN Interface conforms with LXI standard
  • IVI Driver supplied
  • Interfaces are opto-isolated from outputs
  • Isolated Analogue remote control of V and I
  • Front and rear terminals
  • P(G) Version is as P above plus GPIB interface
Datasheet
Contact Us
Image Model Description

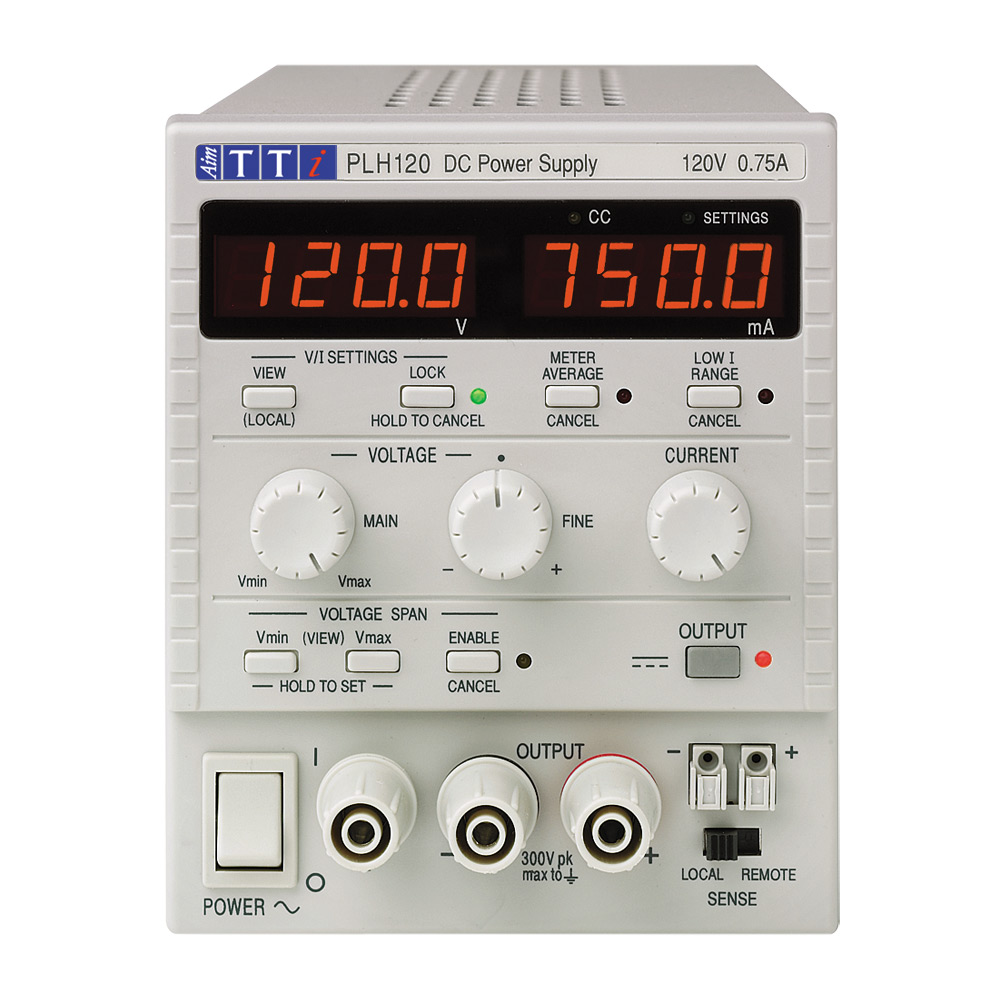

PLH120 PLH120 Bench/System Higher Voltage DC Power Supply 120V/0.75A, No Interfaces

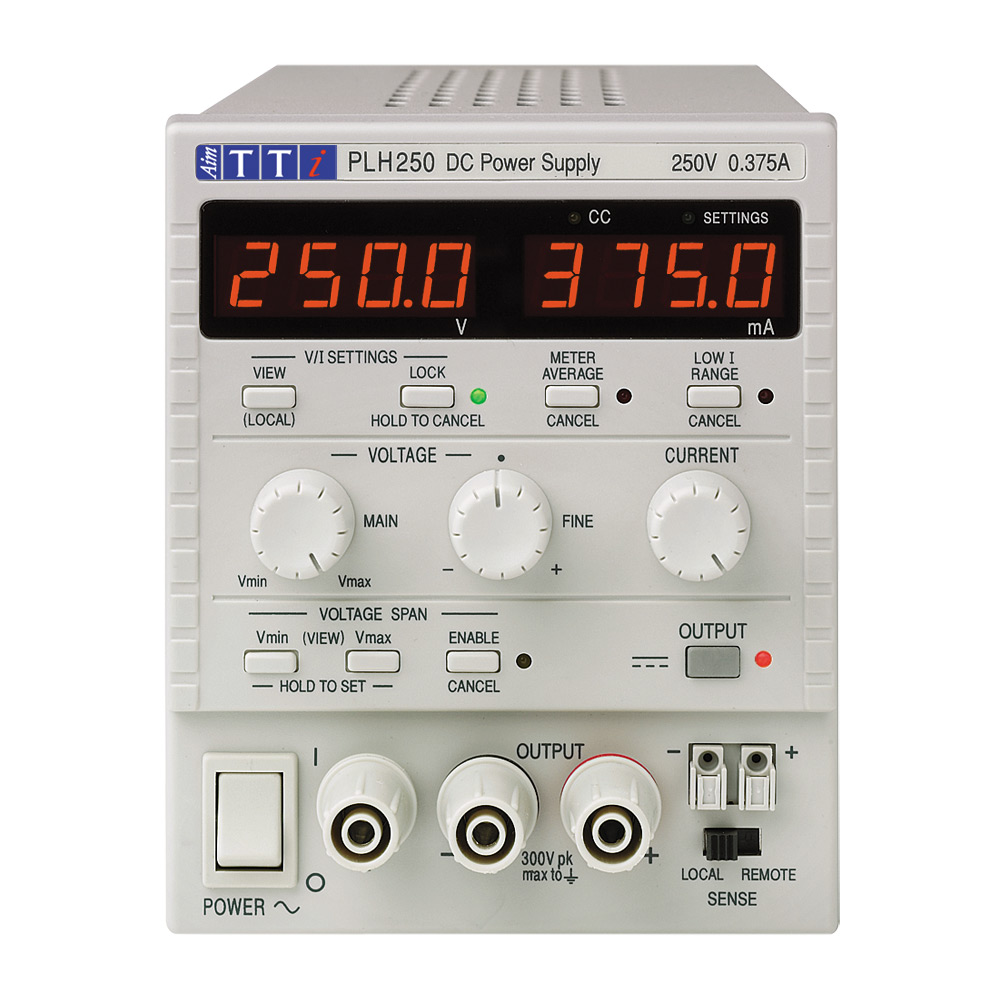

PLH250 PLH250 Bench/System Higher Voltage DC Power Supply 250V/0.375A, No Interfaces
PLH120-P PLH120-P Bench/System Higher Voltage DC Power Supply 120V/0.75A, Isolated Analogue, USB, RS232 and LAN(LXI) Interfaces

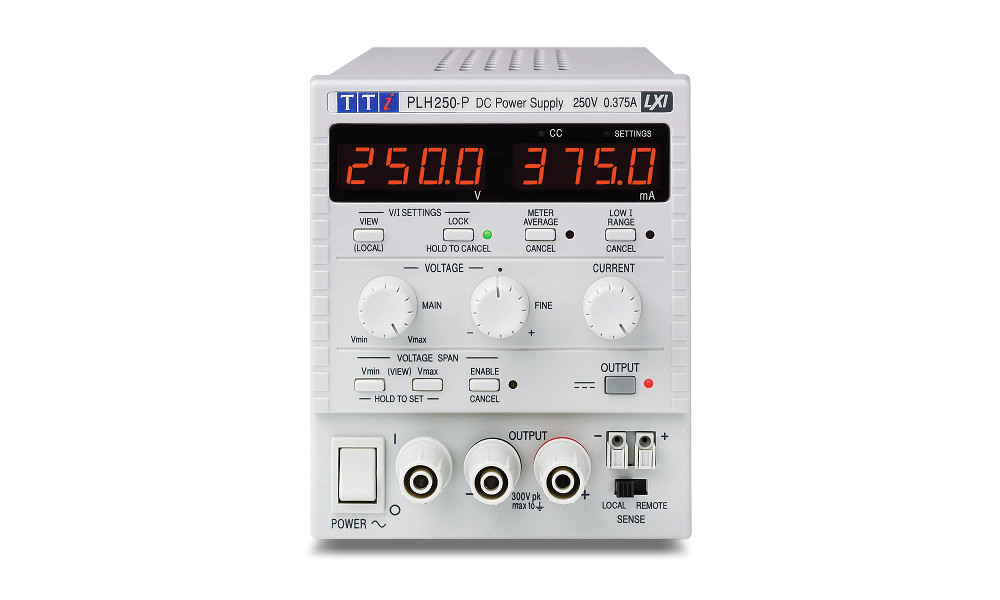

PLH250-P PLH250-P Bench/System Higher Voltage DC Power Supply 250V/0.375A, Isolated Analogue, USB, RS232 and LAN(LXI) Interfaces
PLH120-P(G) PLH120-P(G) Bench/System Higher Voltage DC Power Supply Single 0-120V/0-0.75A USB, RS232, LAN(LXI), Analogue and GPIB interfaces

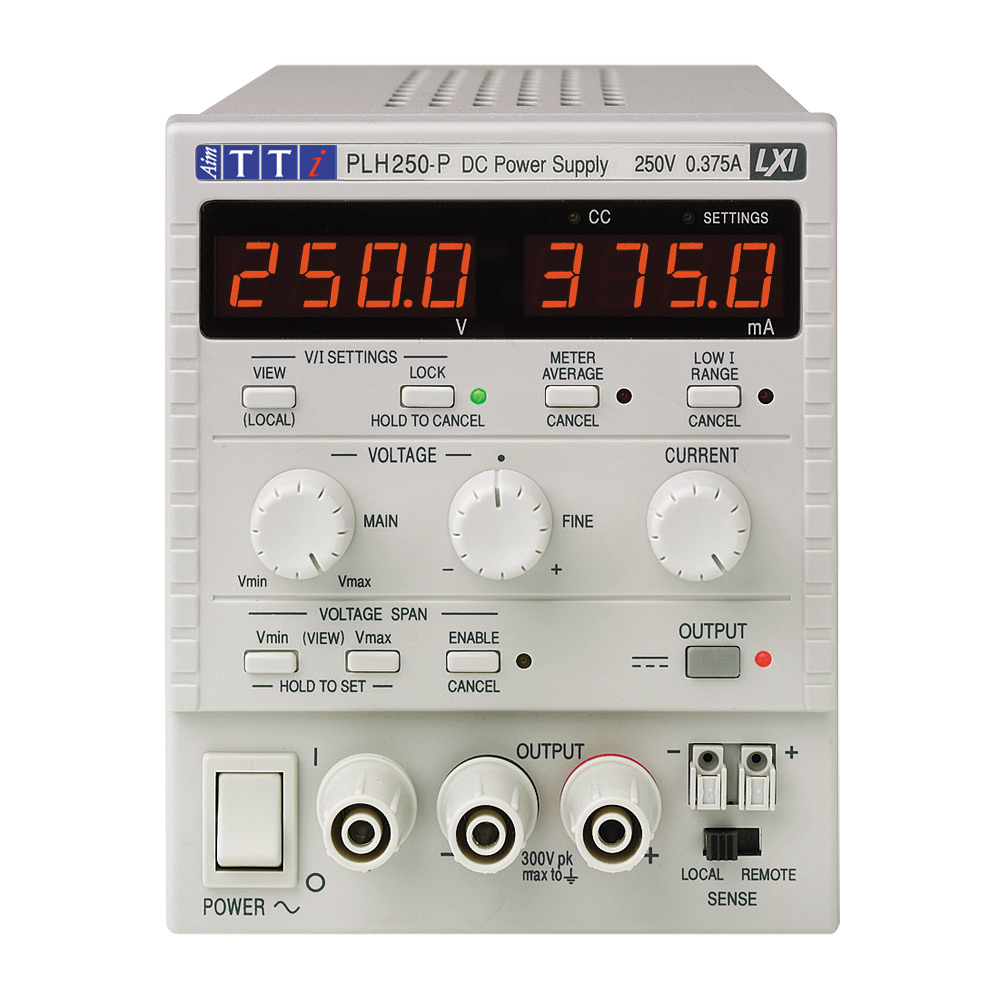

PLH250-P(G) PLH250-P(G) Bench/System Higher Voltage DC Power Supply Single 0-250V/0-0.0375A Isolated Analogue, USB, RS232, LAN(LXI) and GPIB interfaces
