TSX Series

Bench/System silent DC Power Supply with mixed-mode regulation - single output up to 360 watts, with/without remote interfaces

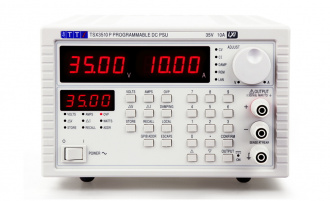

TSX3510P Power Supply Image - 0 to 18V at 0 to 10A

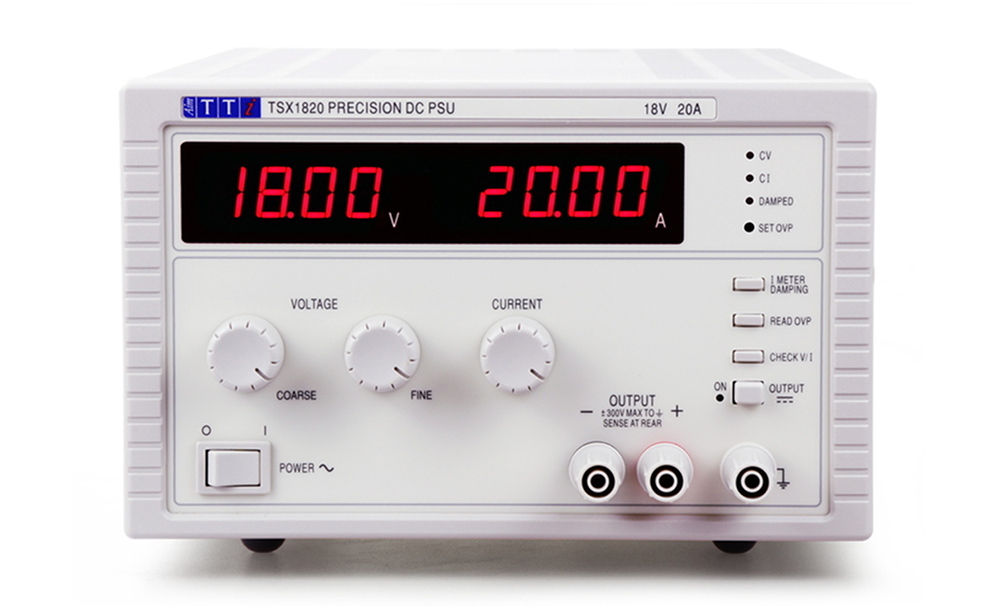

TSX1820 Power Supply Image - 0 to 18V at 0 to 20A or 0 to 35V at 0 to 10A
Test Bridge Image
TSX3510P Power Supply Image - 0 to 18V at 0 to 10A
TSX1820 Power Supply Image - 0 to 18V at 0 to 20A or 0 to 35V at 0 to 10A
Test Bridge Image
  • Compact & lightweight power supply
  • 0 to 18V at 0 to 20A or 0 to 35V at 0 to 10A
  • Bench or rack mounting, front & rear terminals
  • Silent fan-less convection cooling
  • Very low noise, excellent transient response
  • Comprehensive protection including OVP trip
  • High setting resolution, remote sense terminals
  • Analogue controls
  • P LXI versions add:
  • USB, RS232 and LAN interfaces as standard
  • Optional GPIB interface
  • Keyboard setting of all parameters
  • Rotary and delta (step) control of V and I
  • Watts display, non-volatile storage of 25 settings
  • Fully programmable with bus readback of V & I
Datasheet
Contact Us
Image Model Description
TSX1820 TSX1820 Bench/System silent DC Power Supply with mixed-mode regulation 18V/20A with analogue controls, no remote interfaces

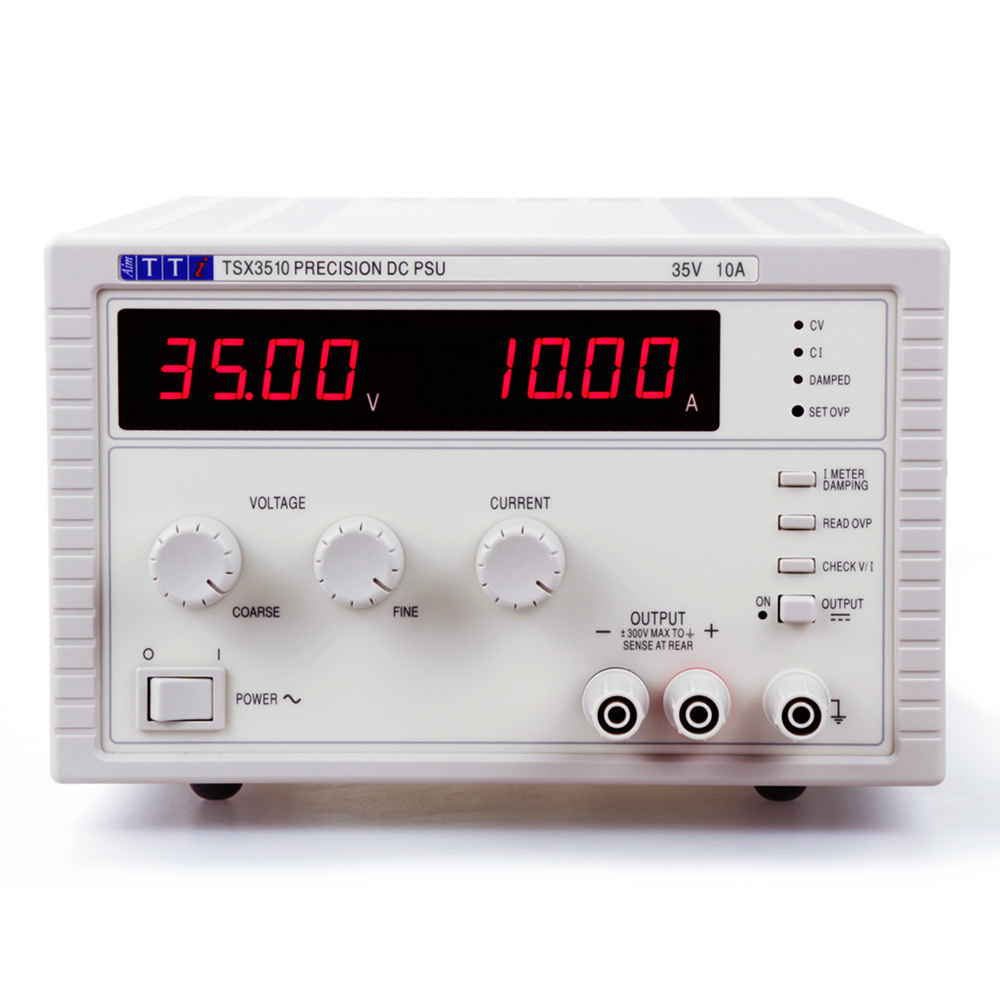

TSX3510 TSX3510 Bench/System silent DC Power Supply with mixed-mode regulation 35V/10A with analogue controls, no remote interfaces

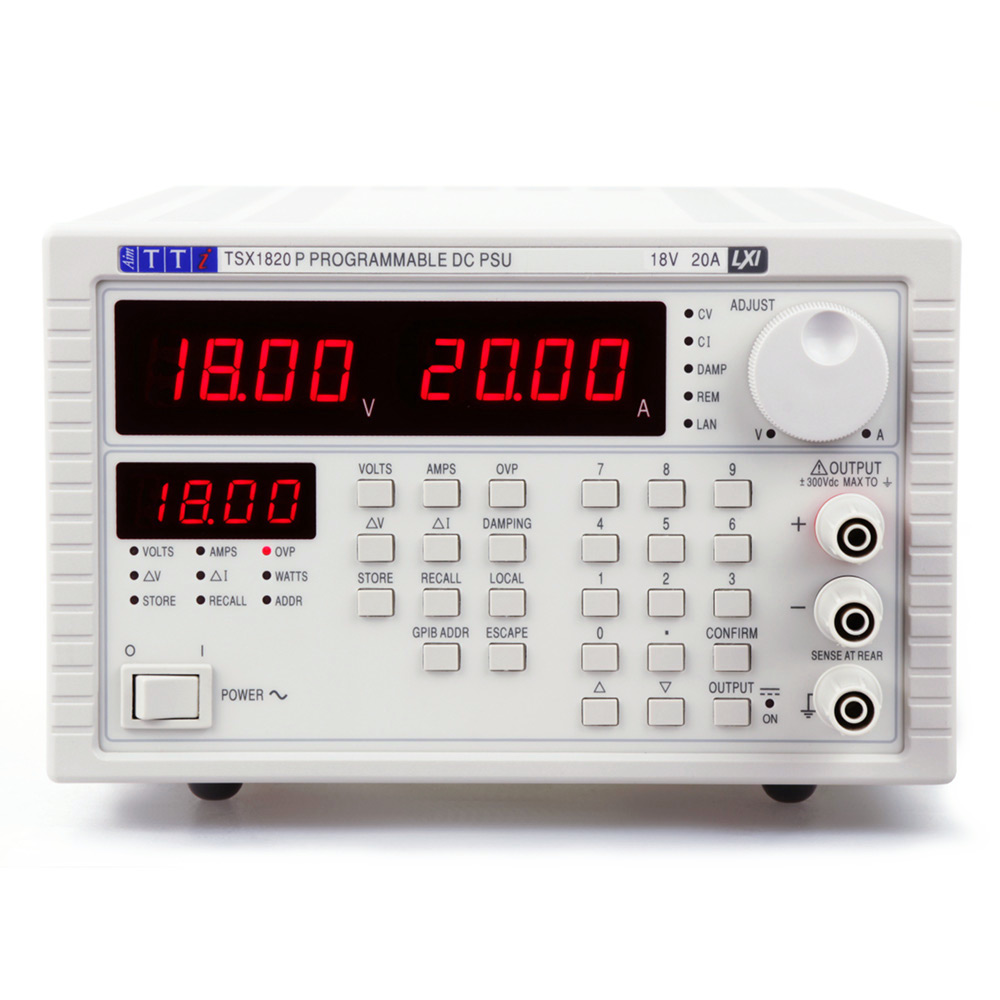

TSX1820P LXI TSX1820P LXI Bench/System silent DC Power Supply with mixed-mode regulation 18V/20A, Digital Controls, USB, RS232 and LAN Interfaces, GPIB option
TSX3510P LXI TSX3510P LXI Bench/System silent DC Power Supply with mixed-mode regulation 35V/10A, Digital Controls, USB, RS232 and LAN Interfaces, GPIB option
