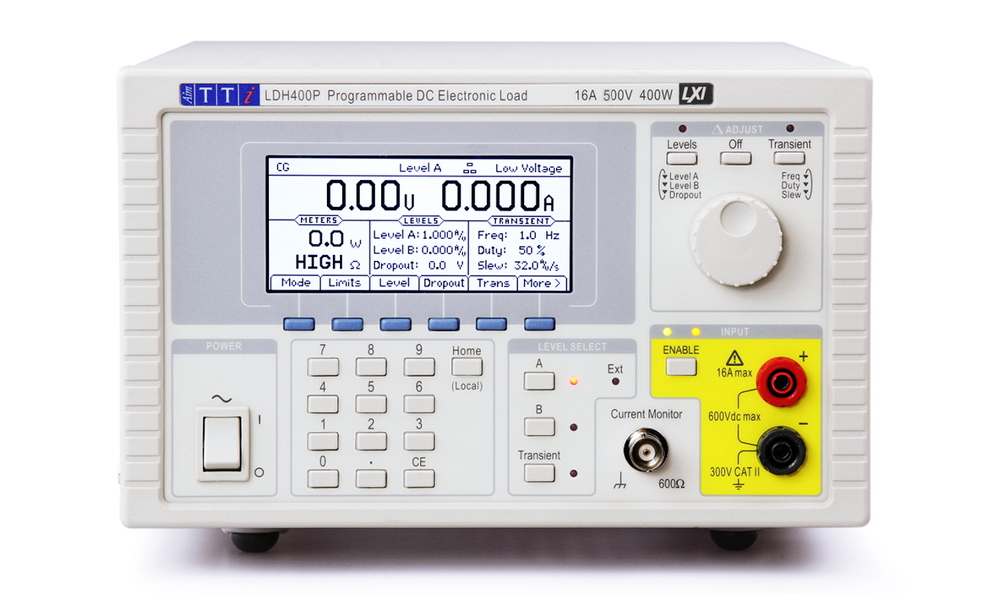

LDH400 Series

Electronic DC Load, 500V, 16A, 400W

❮ ❯

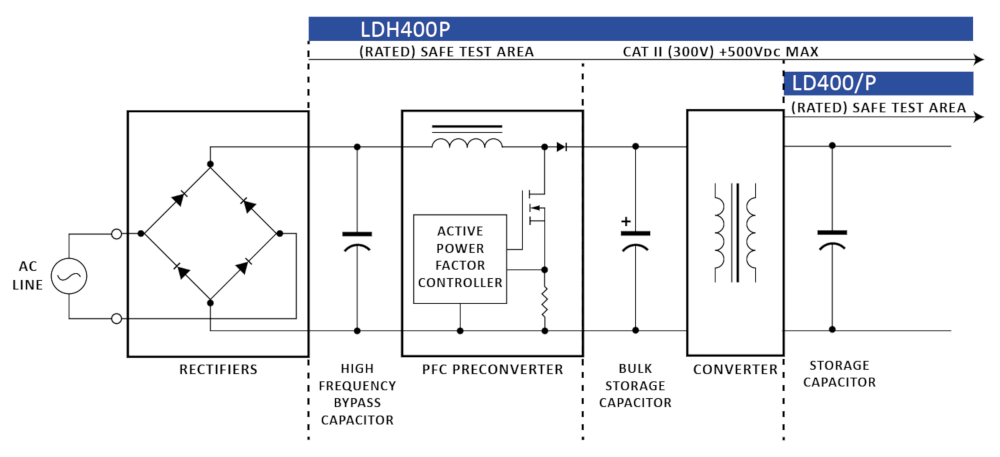

Versatile solution for direct testing of dc power sources and PFCs
Constant current, resistance, conductance and power modes
Wide voltage and current range, 10 to 500V and 0 to 16A
400 watts continuous dissipation at 28°C (360W at 40°C)
High resolution and accuracy for level setting
Built-in transient generator with variable slew
Current monitor output for waveform viewing
Variable drop-out voltage for battery testing
High resolution backlit graphic LCD with soft key control
Analogue remote control of levels and TTL control of on/off and transient switching

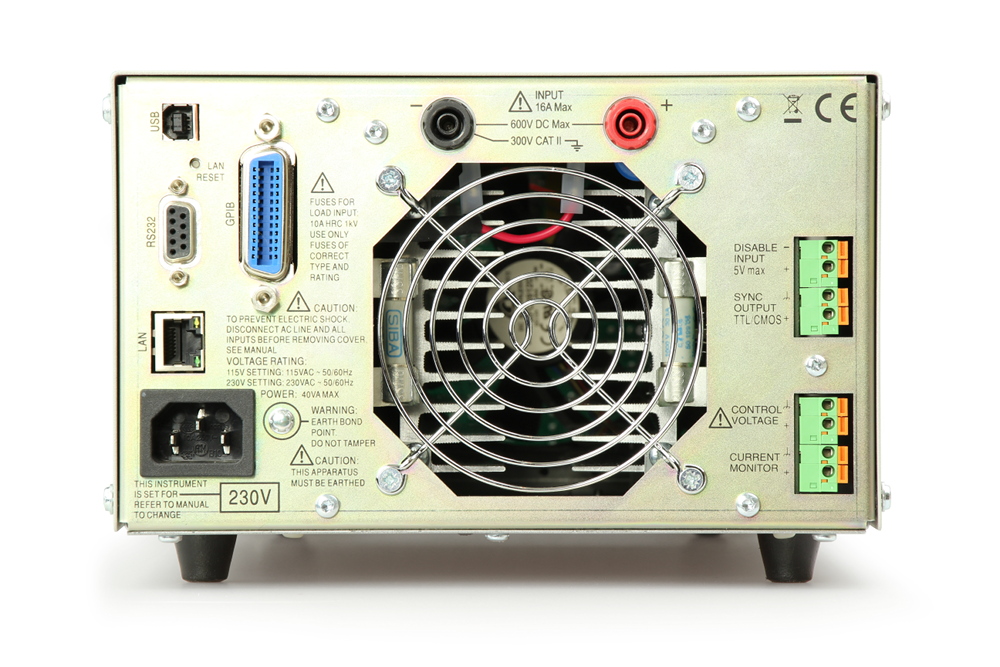

Front and rear input terminals
Load inputs rated to CAT II (300V)
Full bus control via USB, RS232 and LXI compliant LAN interfaces
Test Bridge software available (free download)
GPIB Option

Datasheet
Contact Us

Image	Model	Description
	LDH400P	Electronic DC Load, 500V, 16A, 400W with analogue and digital control, USB, RS232 and LAN/LXI
