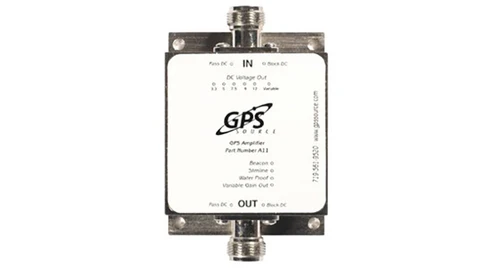

GPS/GNSS Amplifier (A11), Galileo, GLONASS Amplifier is an in-line one input one output RF device. The
most
common use being the amplification of the GPS signal before 15dB of cable or other RF device loss.
The A11 is available with more options than any competitive product on the market.
The A11 features 30dB of Gain, and a noise figure of less than 1.8dB. It can be powered externally
with an AC input voltage option, a DC input option, or, since the product consumes less than 16mA,
it may be powered by the GPS receiver’s antenna voltage output. Regardless of the input power
configuration, the A11 can provide a DC voltage output to power an active GPS antenna.
