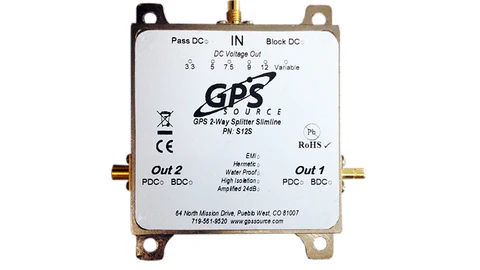

The S12S GPS Splitter is a one-input, two-output GPS device. This product typically finds application
where an input from an active GPS roof antenna is split evenly between two receiving GPS units. In this
scenario, the S12 can be configured to pass DC from an RF output (J1) to the antenna input port in order
to power an active GPS antenna on that port. The second RF output would feature a 200 Ohm DC load to
simulate an antenna DC current draw for any receiver connected to that port.
Contact Us
Standard configuration on non-powered splitters is to pass DC on the input and port1, Block DC on
all of the remaining ports.
Standard configuration on powered splitters is to pass DC on the input and block DC on all outputs.
