RF Terminations or loads are used to absorb incident power at a port with very little reflection. SigaTek offers a wide selection of RF microwave 50 ohm loads terminations male and female type. A selection of SMA loads covering frequency range DC to 27 Ghz, 2.92 mm loads covering frequency range DC to 40 Ghz and 2.4 mm loads covering frequency range DC to 60 Ghz. The 2.4mm loads are good up to 65 Ghz with some minor degradation in return loss. Power rating is 2 watt,1 watt and 0.5 watt. Rugged construction excellent return loss.
| Part Number PDF-Data | Frequency Range MHz | Connector Type | Power Watt Max | VSWR | VSWR Data Plots | |
|
Male Loads-Terminations 50 ohms
|
||||||

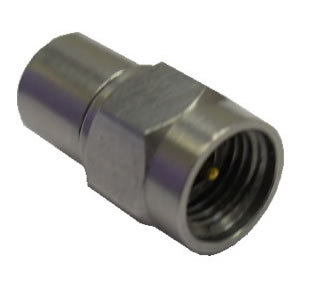

| LMS-1 | DC-40.0 | 2.92mm- Male | 0.5 | 1.20:1 | LMS-1 | |

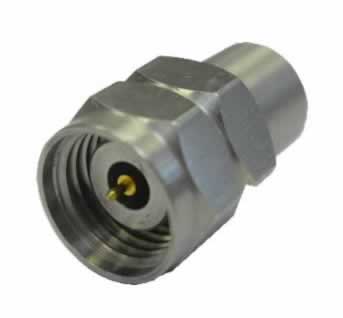

| LMS-2 | DC-60.0 | 2.4mm- Male | 0.5 | 1.40:1 | LMS-2 | |

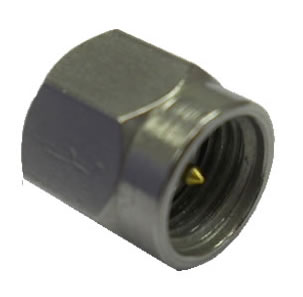

| LMS-3 | DC-20.0 | SMA- Male | 1.0 | 1.20:1 | LMS-3 | |
| LMS-6 | DC-27.0 | SMA- Male | 1.0 | 1.40:1 | LMS-6 | |
| LMS-4 | DC-18.0 | SMA- Male | 2.0 | 1.25:1 | LMS-4 | |
| LMS-9 | DC-26.5 | SMA- Male | 2.0 | 1.35:1 | LMS-9 | |
| LMS-5 | DC-12.4 | SMA- Male | 1.0 | 1.40:1 | LMS-5 | |
|
Female Loads-Terminations 50 ohms
|
||||||

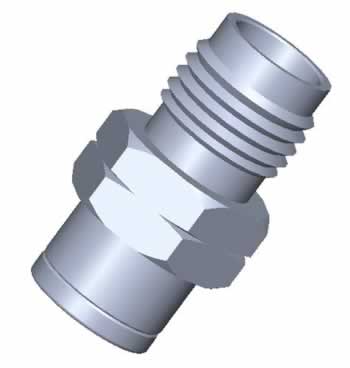

| LFS-7 | DC-40.0 | 2.92mm- Female | 0.5 | 1.20:1 | LFS-7 | |
| LFS-8 | DC-60.0 | 2.4mm- Female | 0.5 | 1.40:1 | LFS-8 | |
|
NOTE: SMA is compatible to 3.5mm and 2.92mm, 2.4mm is compatible to 1.85mm.
|
||||||
