TG251xA/501xA Series

High Performance Function/Arbitrary/Pulse Generator 25MHz or 50MHz, 1 or 2 Channels

❮ ❯

One or two channels
0.001mHz to 50MHz/25MHz range; 14 digits or 1uHz resolution.
Standard waveforms include sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic and PRBS.
True pulse generator with variable delay and variable rise/fall.
Arbitrary waveforms of up to 128K points at up to 125MS/s.
Waveform storage using USB flash drives.
Large graphic LCD with simultaneous text and waveform display.
Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum and PRBS.
20mV to 20V pk-pk output from 50Ohms ; plus multi function aux. out.
Storage for multiple instrument set-ups in non-volatile memory.
Waveform Manager Plus for Windows software included.
Programmable via USB and LAN (LXI) interfaces; GPIB optional.

Datasheet
Contact Us

Image	Model	Description
	TG2511A	High Performance Function/Arbitrary/Pulse Generator 25MHz, One Channel

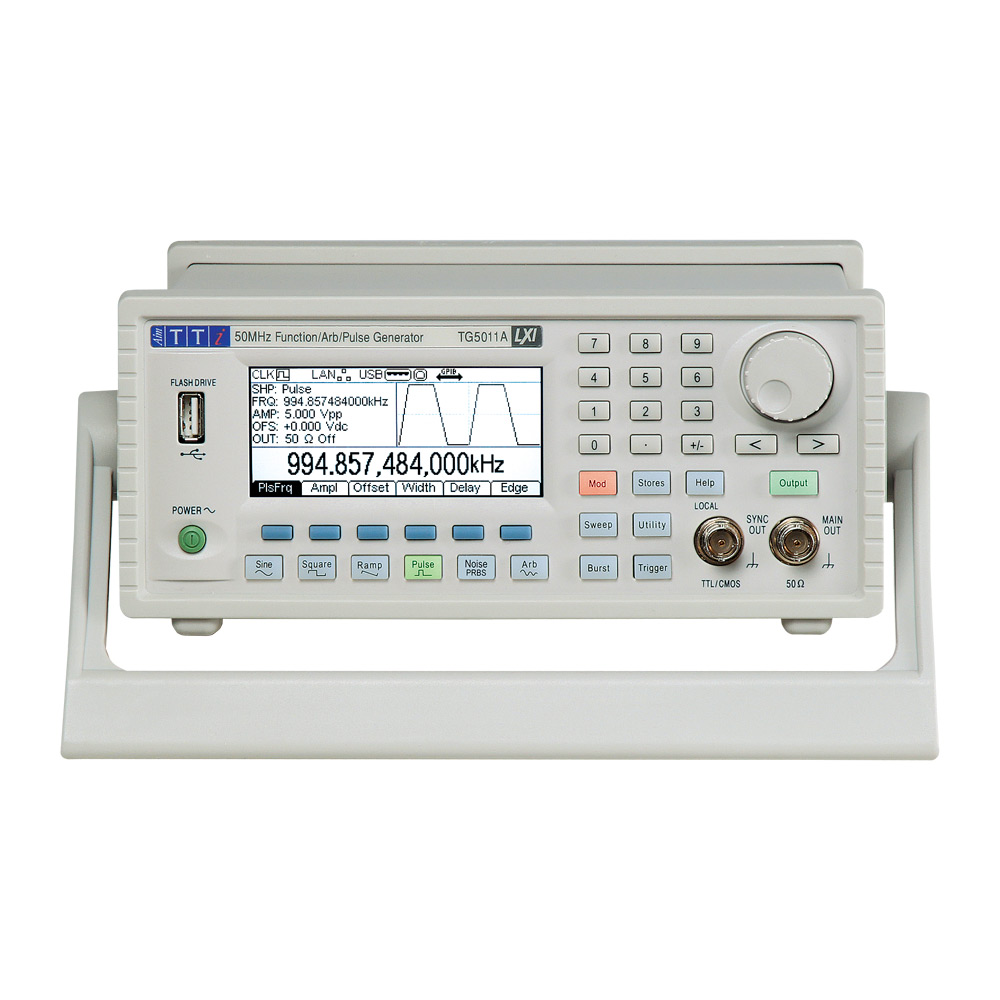

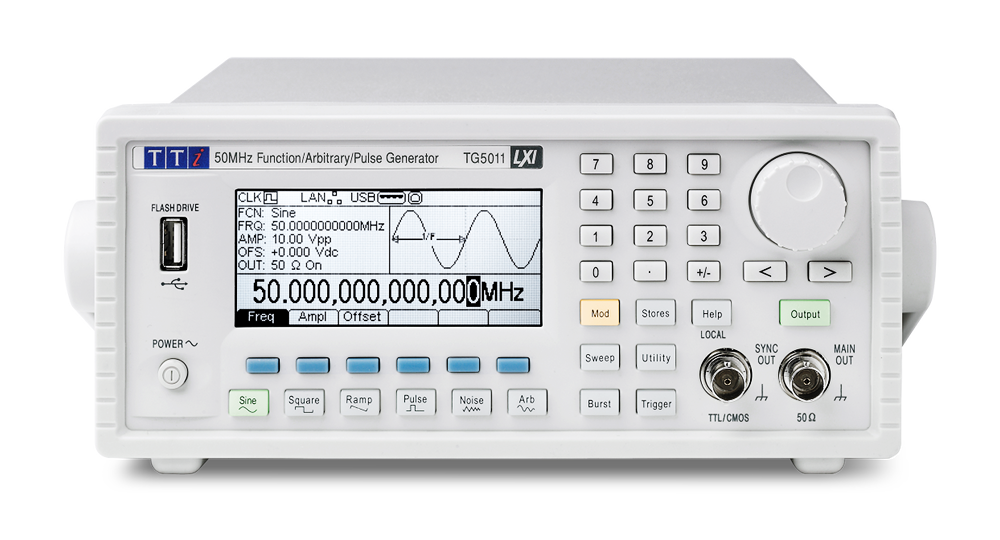

	TG5011A	High Performance Function/Arbitrary/Pulse Generator 50MHz, One Channel
	TG2512A	High Performance Function/Arbitrary/Pulse Generator 25MHz, Two Channel

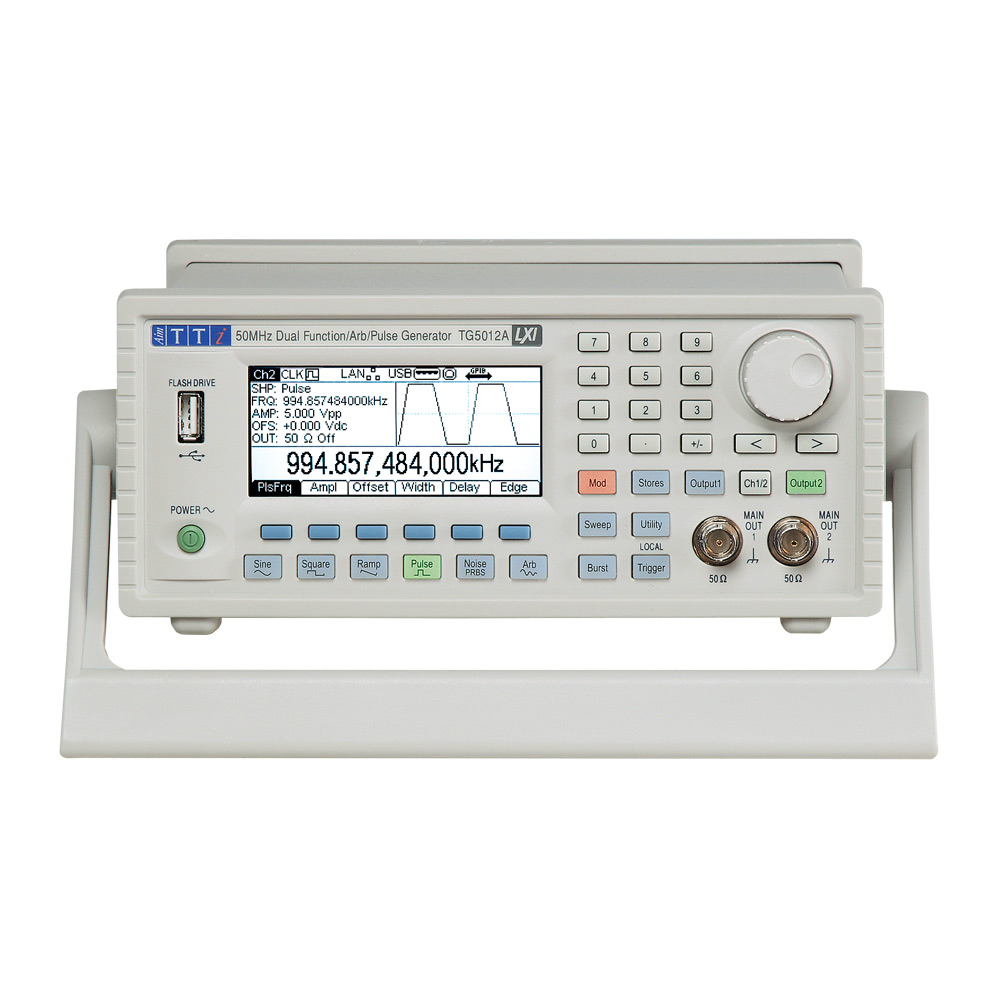

	TG5012A	High Performance Function/Arbitrary/Pulse Generator 50MHz, Two Channel
