2-Way Power Dividers/Combiners: Stripline
Pulsar Microwave manufactures a large selection of 2-way power dividers in narrowband and broadband configurations, covering frequencies from 225 MHz to 70 GHz. They are designed to handle from 10 to 30 watts input power in a 50-ohm transmission system. Microstrip or stripline designs are utilized, and optimized for best performance.
Units come standard with SMA or N female connectors, or 2.92mm, 2.40mm, and 1.85mm connectors for high frequency components.
3-Way Power Dividers/Combiners: Stripline
Pulsar Microwave's 3-way power dividers cover 500 MHz to 35 GHz in various connectorized packages. They are rated to handle 30 watts maximum input power for a load VSWR of 1.20:1 or better. The 3-way power combiners are available in both in-line and Tee configurations, and come standard with SMA or N female connectors.

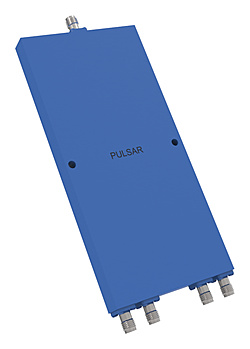

4-Way Power Dividers/Combiners: Stripline
Pulsar Microwave's 4-way power dividers are available in narrowband and broadband configurations, covering frequencies from 500 MHz to 60 GHz. They are designed to handle from 10 to 30 watts input power in a 50-ohm transmission system. Microstrip or stripline designs are utilized, and optimized for best performance.
Units come standard with SMA or N female connectors, or 2.92mm, 2.40mm, and 1.85mm connectors for high frequency components.
6-Way Power Dividers/Combiners: Stripline
Pulsar Microwave manufactures 6-way power dividers in connectorized packages spanning 400 MHz through 22 GHz. These narrow and broadband models are designed to operate in a 50-ohm system and are rated at 30 watts. The 6-way connectorized power dividers are available standard with wither SMA or N female connectors, though other configurations of BNC, TNC, F and male connectors are possible.
8-Way Power Dividers/Combiners: Stripline
Pulsar Microwave's 8-way power dividers cover broadband and narrowband applications from 500 MHz to 40 GHz, and are designed to operate in 50-ohm systems. They are rated at 30 watts input power and are available with SMA or N female connectors, or with 2.92mm connectors for frequencies above 35 GHz.
12, 16, 32-Way Power Dividers/Combiners
Pulsar Microwave manufactures N-way power dividers in connectorized packages spanning 500 MHz through 8.5 GHz. These narrow and broadband models are designed to operate in a 50-ohm system and are rated at 30 watts.
